Chi tiết sản phẩm

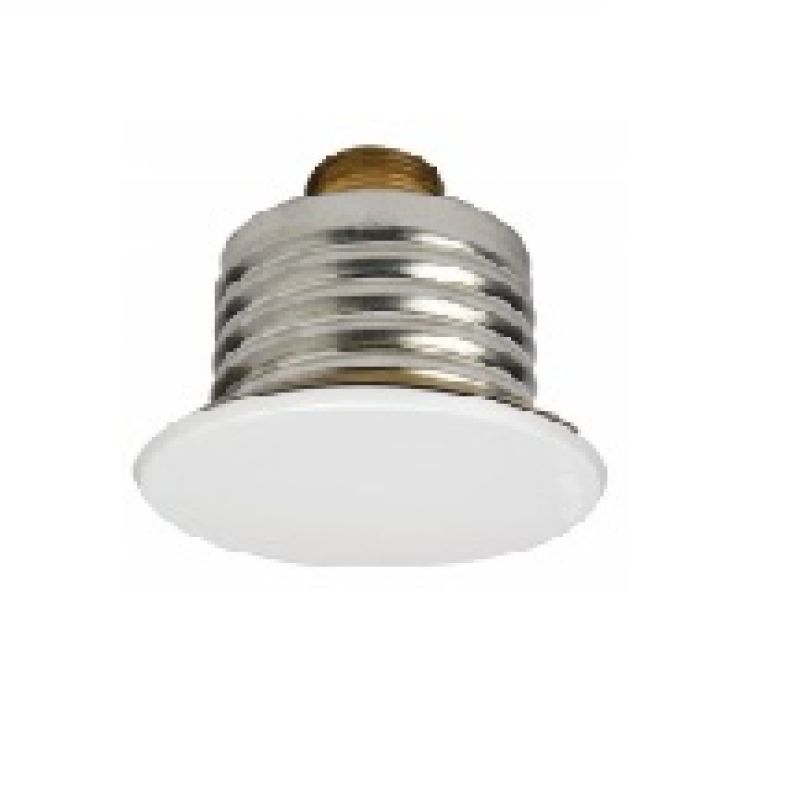

- TY5522 Đầu Phun Sprinkler Tyco Âm Trần K11.2
- Mã sản phẩm: TY5522
- Giá: Liên hệ
- Lượt xem: 1118
The TYCO Model ELOC, 11.2 K-factor, Extended Coverage, Light Hazard, Extra Large Orifice Concealed (ELOC) Pendent Sprinklers are decorative, fast response solder type sprinklers featuring a flat cover plate designed to conceal the sprinkler. When limited water pressure is available, the ELOC is the best choice for architecturally sensitive areas such as hotel lobbies, office buildings, churches, and restaurants.
They are intended for use in automatic sprinkler systems designed in accordance with standard installation rules (e.g., NFPA 13). The fast response thermal sensitivity rating of the Model ELOC (TY5522) provides for a quick response extended coverage (QREC) rating up to an 18 ft x 18 ft coverage area.
Sprinkler Identification Number
TY5522
TY5522 is a redesignation for C5522
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
Technical Data
Approvals
UL and C-UL Listed
NYC Approved under MEA 177-03-E (The listings apply only to the service conditions indicated in the Design Criteria section.)
Approvals for Air & Dust Seal
UL and C-UL
Listed Refer to Table A for complete approval information
Maximum Working Pressure 175 psi (12,1 bar)
Discharge Coefficient K= 11.2 gpm/psi½ (161,3 lpm/bar½)
Temperature Rating
160°F (71°C) Sprinkler/
139°F (59°C) Plate 212°F (100°C) Sprinkler/
165°F (74°C) Plate Adjustment 3/4 in. (19,1 mm)
