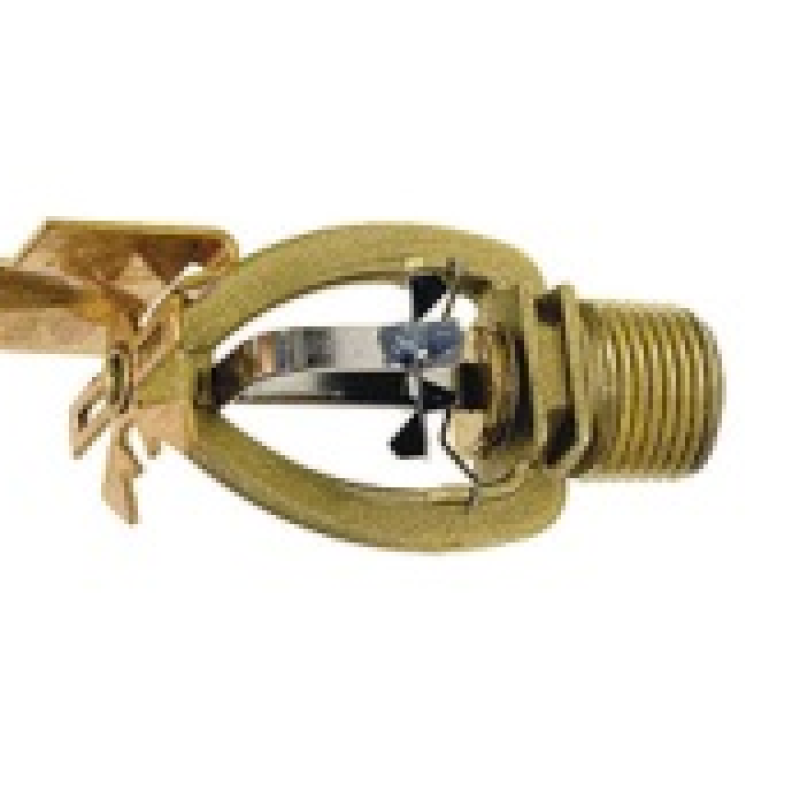

- TY3322 Đầu Phun Sprinkler Tyco Hướng Ngang k5.6 K8.0
- Mã sản phẩm: TY3322
- Giá: Liên hệ
- Lượt xem: 1286
The Series TY-FRL, 5.6, and 8.0 K-factor, Extended Coverage Horizontal Sidewall Sprinklers are solder type spray sprinklers designed for use in hydraulically calculated sprinkler systems in light hazard, commercial occupancies such as churches, restaurant seating areas, hotels, educational facilities, offices, etc. With their coverage up to 16 ft (4,9 m) wide by 24 ft (7,3 m) long, they are designed for installation along a wall or the side of a beam and just beneath a smooth, flat, horizontal ceiling.
Horizontal sidewall sprinklers are commonly used instead of pendent or upright sprinklers due to aesthetics or building construction considerations where piping across the ceiling is not desirable.
The fast response thermal sensitivity rating of the Series TY-FRL provides for a quick response extended coverage (QREC) rating for many of the coverage areas detailed in Tables B and C.
Sprinkler Identification Number
TY3322 — EC HSW, 5.6K, 1/2”NPT
TY4322 — EC HSW, 8.0K, 3/4”NPT
TY3322 is a redesignation for S1888 and G8970.
TY4322 is a redesignation for S1868 and G8170.
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
Technical Data
Approvals
UL and C-UL Listed. FM and NYCApproved.
(Refer to Table A for complete approval information, as well as the Design Criteria Section pertaining to special design considerations.)
Maximum Working Pressure
175 psi (12,1 bar) Discharge Coefficient
K = 5.6 GPM/psi1/2 (80,6 LPM/bar1/2)
K = 8.0 GPM/psi1/2 (115,2 LPM/bar1/2
