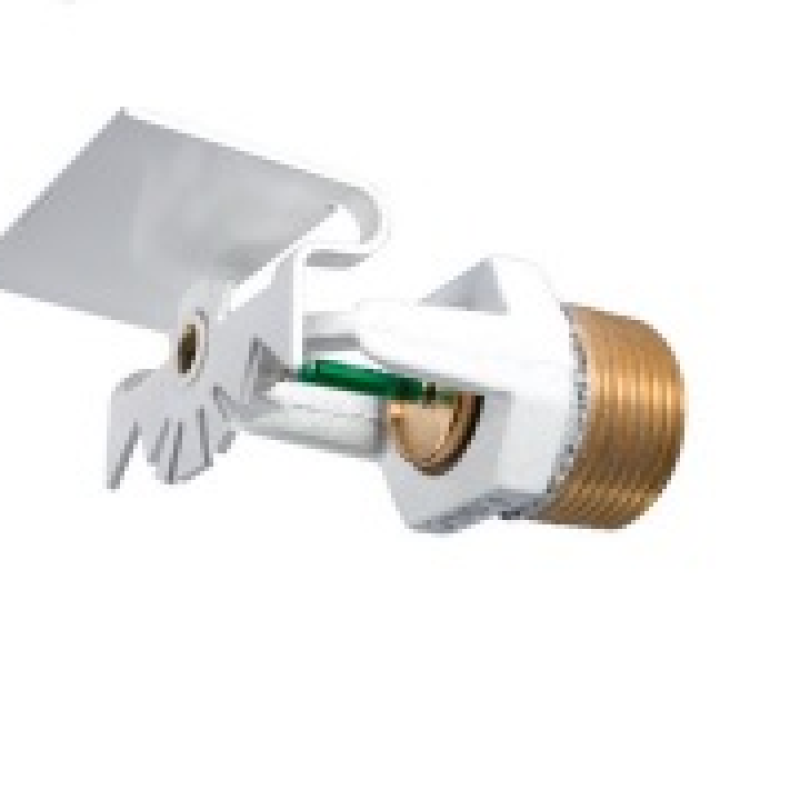

- TY5332 Đầu Phun Tyco Hướng Ngang K11.2 SR
- Mã sản phẩm: TY5332
- Giá: Liên hệ
- Lượt xem: 1003
General Description
The TYCO Model SW-20 and SW-24, 11.2 K-factor, Extended Coverage Ordinary Hazard (ECOH) Horizontal Sidewall Sprinklers, Standard Response are decorative glass bulb sprinklers designed for use in ordinary hazard occupancies per NFPA 13.
The SW-20 provides protection of coverage areas up to 16 ft x 20 ft (320 ft2), whereas the SW-24 provides protection of coverage areas up to 16 ft x 24 ft (384 ft2), as compared to standard coverage horizontal sidewall sprinklers having a maximum coverage area of 10 ft x 10 ft (100 ft2) for ordinary hazard occupancies.
Horizontal sidewall sprinklers are designed for installation along a wall or the side of a beam and are commonly used instead of pendent or upright sprinklers due to aesthetics or building construction considerations, where piping across the ceiling is not desirable.
Sprinkler Identification Number (SIN)
TY5332 - SW-20
TY5337 - SW-24
TY5332 is a re-designation for C5332
TY5337 is a re-designation for C5337
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
Technical Data
Approvals
UL and C-UL Listed (Refer to the Design Criteria Section)
Polyester coated sprinklers are UL and C-UL Listed as Corrosion Resistant Sprinklers
Maximum Working Pressure 175 psi (12,1 bar)
Discharge Coefficient K= 11.2 GPM/psi½ (161,3 LPM/bar½)
Temperature Rating SW-20: 155°F (68°C) & 200°F (93°C) SW-24: 200°F (93°C)
