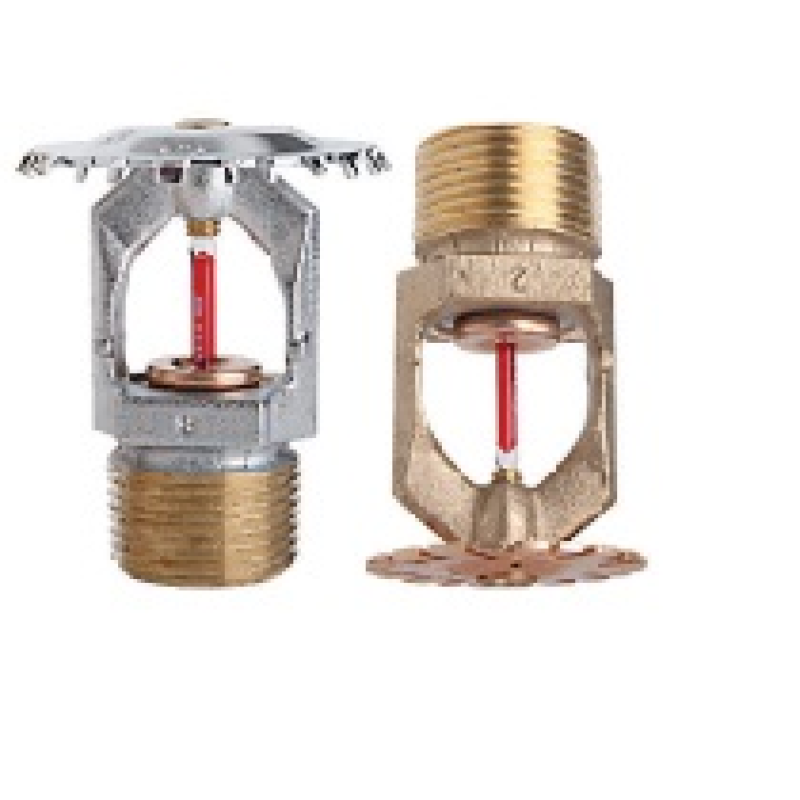

- TY5137 Đầu Phun Hướng lên Tyco K11.2
- Mã sản phẩm: TY5137
- Giá: Liên hệ
- Lượt xem: 1115
TYCO Series EC-11 and EC-14 Extended Coverage Upright and Pendent Sprinklers are decorative glass-bulb sprinklers designed for use in light or ordinary hazard occupancies. They are intended for use in automatic sprinkler systems designed in accordance with standard installation rules, such as NFPA 13, for a maximum coverage area of 400 ft2 (37,2 m2) as compared to the maximum coverage area of 130 ft2 (12,1 m2) for standard coverage sprinklers used in ordinary hazard occupancies,
Series EC-11 and EC-14 Extended Coverage Sprinklers feature a UL and C-UL Listing that permits their use with unobstructed or non-combustible obstructed ceiling construction as defined and permitted by NFPA 13, as well as a specific application listing for use under concrete tees. Series EC-11 and EC-14 Extended Coverage Sprinklers have been fire tested to compare their performance to that of standard coverage spray sprinklers. These tests have shown that the protection provided is equal to or more effective than standard coverage spray sprinklers.
Sprinkler Identification Numbers
TY5137 .....................Upright, 11.2K
TY5237 . . . . . . . . . . . Pendent, 11.2K
TY6137 . . . . . . . . . . . . Upright, 14.0K
TY6237 . . . . . . . . . . . Pendent, 14.0K
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
Pression de service maximale 175 psi (12,1 bar)
Raccord fileté pour tuyauterie NPT 3/4 po
Coefficients de décharge K = 11,2 GPM/psi½ (161,3 LPM/bar½)
K = 14,0 GPM/psi½ (201,6 LPM/bar½)
