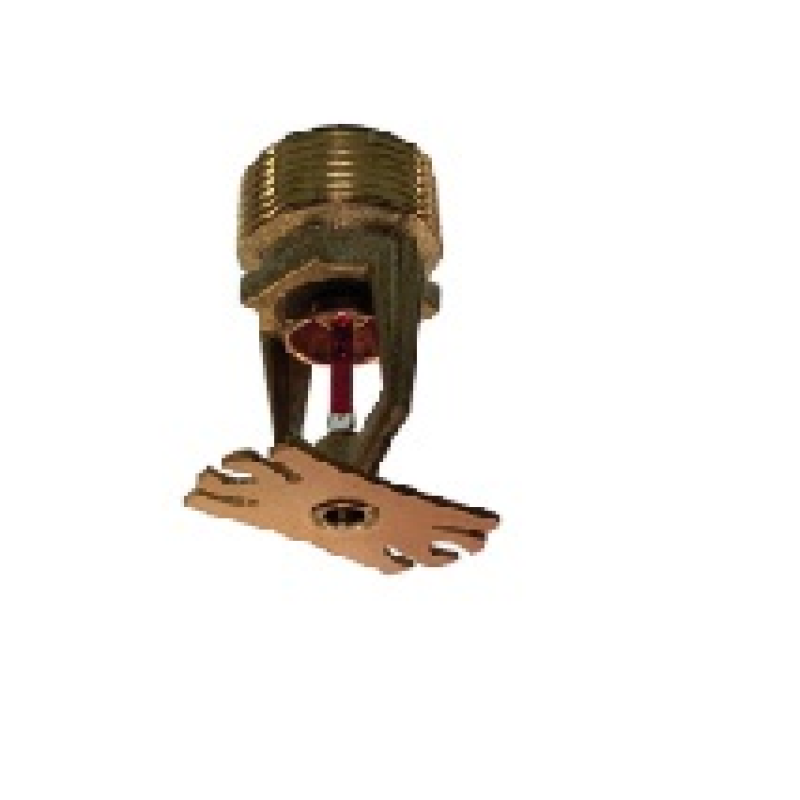

- TY4282 Đầu Phun Sprinkler Tyco Hướng Xuống K.80 Phản Ứng Nhanh
- Mã sản phẩm: TY4282
- Giá: Liên hệ
- Lượt xem: 964
General Description
The EC-8C 8.0 K-factor Special Application, Quick Response Pendent and Recessed Pendent Sprinklers are UL Listed for Light Hazard Occupancies and were specifically designed for use in long, narrow spaces such as corridors or hallways with a maximum coverage area of 28 ft by 10 ft (8,5 m x 3,1 m). Fewer sprinklers and lower system pressure demands are required as compared to the traditional extended coverage sprinklers. Series EC-8C sprinklers are intended for use in automatic sprinkler systems designed in accordance per NFPA 13.
The recessed version of the Series EC-8C, Pendent Sprinkler intended for use in areas with a finished ceiling, uses either the two-piece Style 30 or 40 Recessed Escutcheon. The Style 30 Recessed Escutcheon provides up to 1/2 in. (12,7 mm) of total adjustment from the flush pendent position, whereas, the Style 40 provides 3/4 in. (19,1 mm) of vertical adjustment from the flush pendent position. The adjustment provided by the Recessed Escutcheons reduces the accuracy to which the fixed pipe drops to the sprinklers must be cut.
Sprinkler Identification Number (SIN)
TY4282 . . . . . . . . . . . . Pendent, 8.0K
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
Technical Data
Discharge Coefficients
K=8.0 gpm/psi½
(115,2 lpm/bar½)
Temperature Ratings
155°F (68°C) 200°F (93°C)
Finish Sprinkler:
Natural Brass, Signal White Polyester Coated, Pure White Polyester Coated, Jet Black Polyester Coated, or Chrome Plated
Recessed Escutcheon:
Natural Brass, Signal White, Pure White, Jet Black, Chrome Plated
