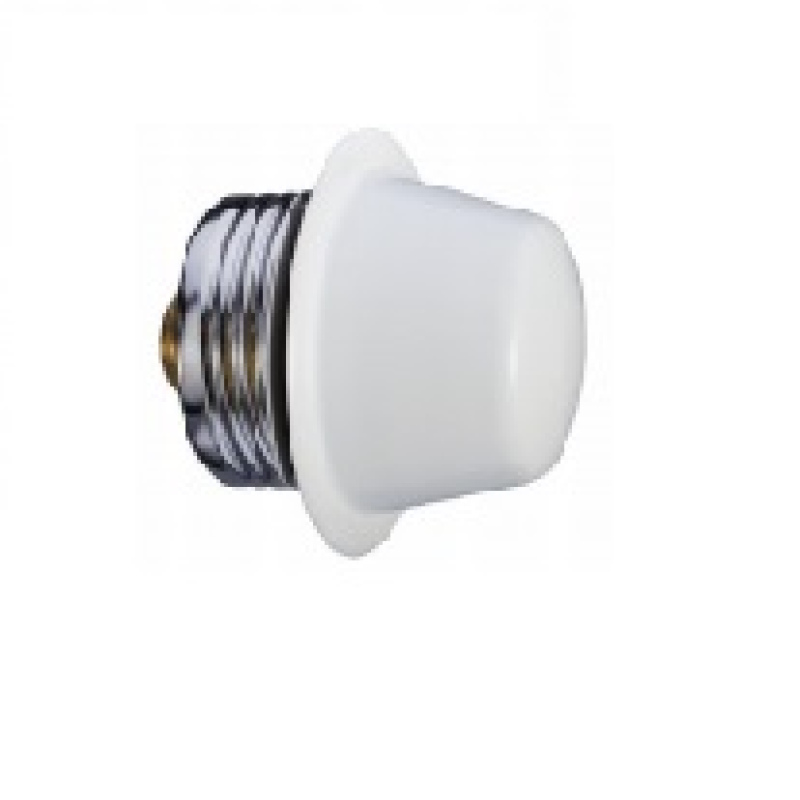

- TY4332 Đầu Phun Sprinkler Hướng Ngang Âm Trần K8.0 QR
- Mã sản phẩm: TY4332
- Giá: Liên hệ
- Lượt xem: 912
The TYCO Model CHEC 8.0 K-factor, Concealed Horizontal Extended Coverage Quick Response Light Hazard, Sidewall Sprinklers are decorative, 3 mm bulb type sprinklers featuring a unique cover plate designed to conceal the sprinkler. It is the best choice for architecturally sensitive areas such as dormitories, hotel rooms, reception areas, office buildings, banquet facilities, conference rooms, and hospitals
The soft contour of the cover plate optimizes a low profile while blending in with surrounding surfaces. The plate, while maintaining a fast response sensitivity has been specifically designed without vent holes to increase its aesthetic appeal while helping to avoid objects from being hung from the sprinkler, such as garment bags and clothes hangers, that might otherwise cause an inadvertent operation.
They are designed for installation along a wall or the side of a beam and beneath a smooth and level ceiling. Horizontal sidewall sprinklers are commonly used in lieu of pendent or upright sprinklers because of aesthetics or building construction considerations where piping across the ceiling is not desirable.
Sprinkler Identification Number TY4332
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
Technical Data
Approvals
UL and C-UL Listed
NYC Approved under MEA 177-03-E
Maximum Working Pressure 175 psi (12,1 bar)
Discharge Coefficient K=8.0 GPM/psi½ (115,2 LPM/bar½)
Temperature Rating 155°F (68°C) Sprinkler with 139°F (59°C) Cover Plate
Horizontal Adjustment 1/2 in. (12,7 mm)
