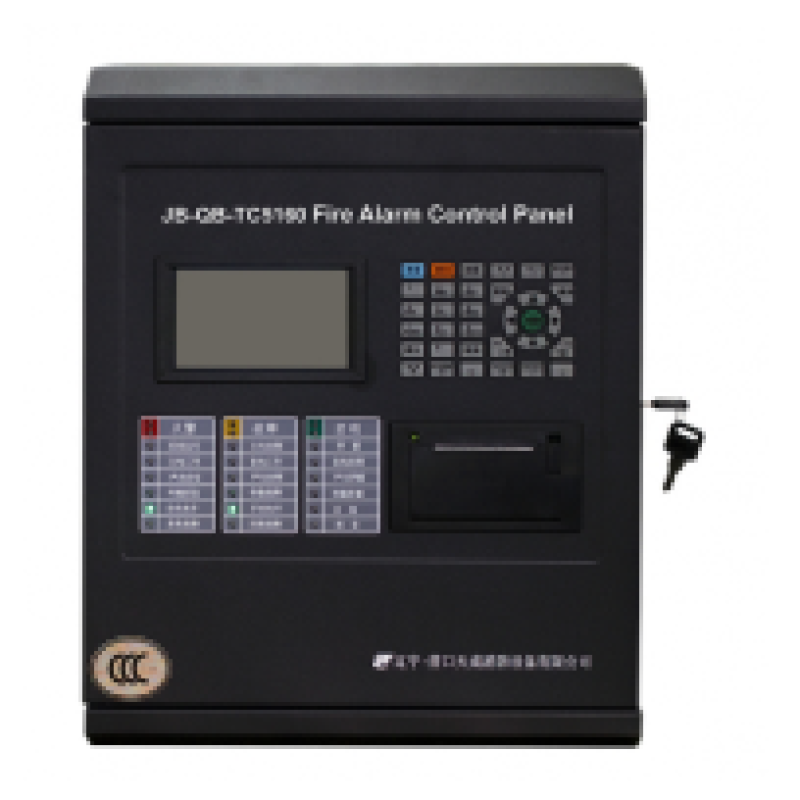

Trung Tâm Báo Cháy Địa Chỉ Dạng Điểm (64/128/255/510)

Color menu display interface

Intelligent bus control mode; maximum 255 addressable points per loop,

maximum 2 loops, maximum 24 fire display panels

Connect with intelligent bus control panel of 18 loops

Connect with multi-wire control panel of three-wire system with 6 addressable

points

Glass fuse per loop

Black box function

Wave filtering style output: loop output, multi-wire output, power output,

sounder strobe output, fire relay output

Providing independent control password for the significant gas spraying

equipment

Design loop protocol yourself

Wall-mounted structure, compact and exquisite

Language support: simplified Chinese, English (America), English (England)

Technical Specifications

Mains supply:AC220V (5A),Voltage range: +10%～-15%

Backup battery:DC24V,12/7AH、12/24AH sealed lead acid battery

LCD screen size: 4.3-inch color LCD screen

Operating Environment:Temperature: 0°C～+40°C;

 Relative Humidity: ≤95%, non-condensing

Capacity: 510 addressable points

Dimension (L×W×H): 360mm×480mm×130mm
