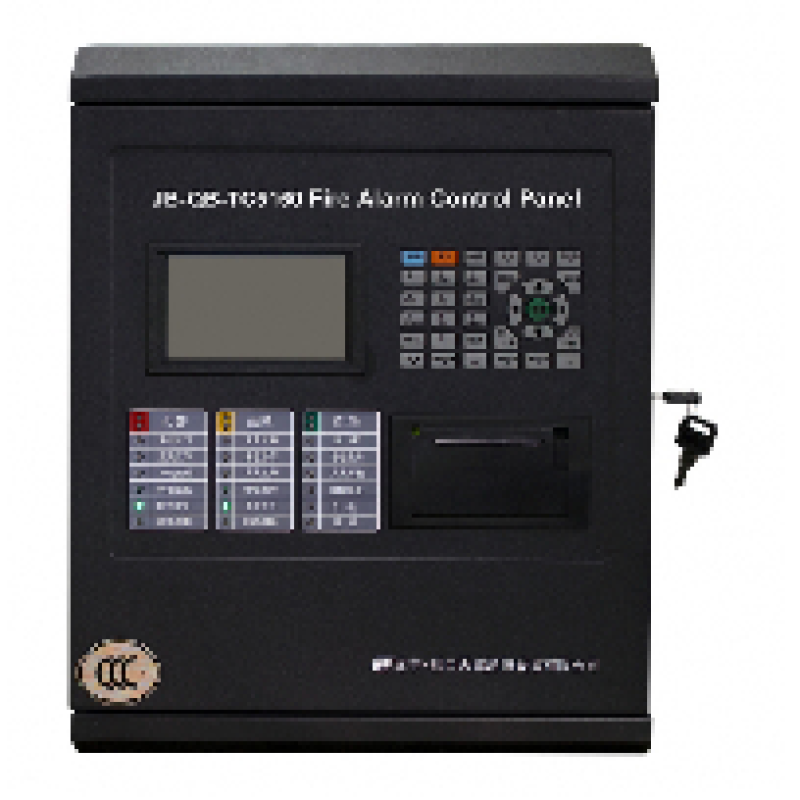

JB-QB-TC5160/64

Color menu display interface

Intelligent bus control mode; maximum 255 addressable points per loop,

maximum 1 loop, maximum 12 fire display panels

Glass fuse per loop

Black box function

Wave filtering style output: loop output, power output, sounder strobe

output, fire relay output

Design loop protocol yourself

Wall-mounted structure, compact and exquisite

Language support: simplified Chinese and English

Technical Specifications

Mains supply:AC220V (3A),Voltage range: +10%～-15%

Backup battery:DC24V (6A),12V/12AH sealed lead acid battery

LCD screen size: 4.3-inch color LCD screen

Operating Environment:Temperature: 0°C～+40°C;

 Relative Humidity: ≤95%, non-condensing

Capacity: 255 addressable points

Dimension (L×W×H): 320mm×120mm×400mm
