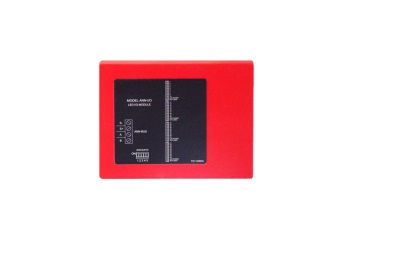

Module Hiển Thị Led

315-040 Technical Specifications Maximum Repeater-Bus Voltage 24 VDC Maximum Current Alarm: 200 mA, Standby: 35 mA, Each LED: 10mA Maximum wiring distance from FACP 6000 ft. (1829 m.) Ambient Temperature 32ºF to 120ºF (0ºC to 49ºC) Relative Humidity 93% ± 2% RH (non-condensing) at 32ºC ± 2ºC (90ºF ± 3ºF) For use indoors in a dry location Connections to FACP power-limited and supervised External measurements 6.00” (15.2 cm.) high x 7.76” (19.7 cm.) wide x 1.46” (3.7 cm.) deep
