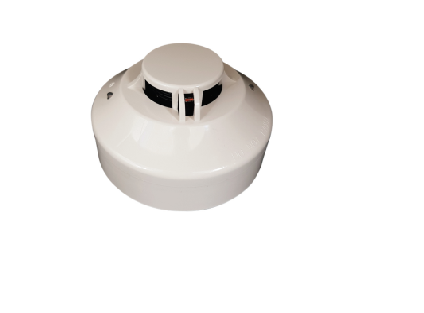

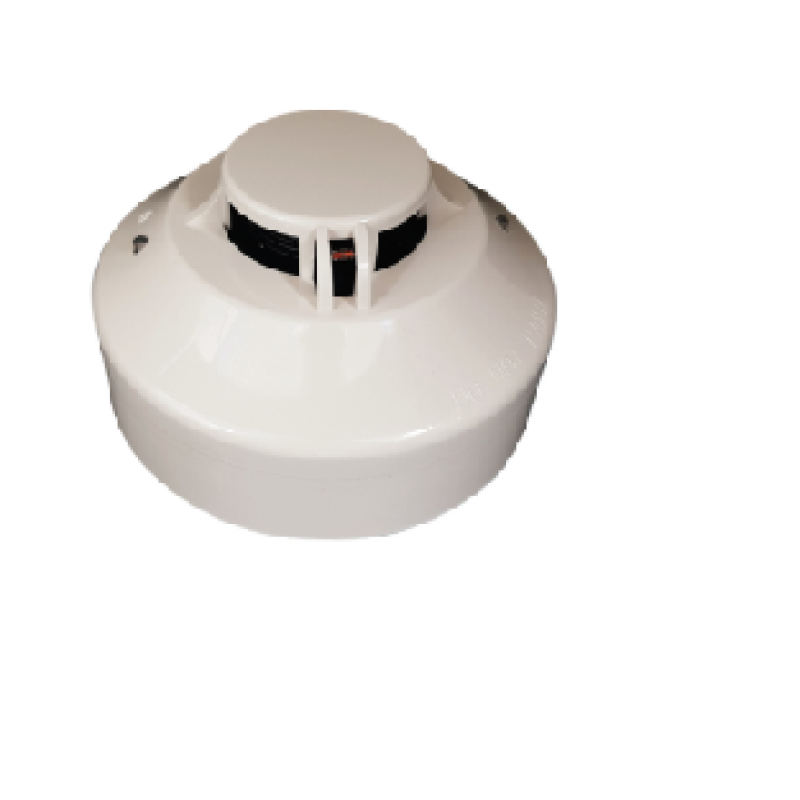

Đầu Báo Khói Địa Chỉ (HM-PSE-UL)

HM-PSE-UL Technical Specifications SPECIFICATION Voltage range 15 – 32 VDC (peak) Standby current 300 μA @ 24 VDC LED current 6.5 mA @ 24 VDC (latched “ON”) Air velocity 4,000 ft./min. (20 m/sec.) maximum Size • 2.1” (5.33 cm) high; base determines diameter • B501: 4.1” (10.4 cm) diameter Weight 3.6 oz. (102 g) Operating temperature range for HM-PSE-UL: 0°C to 49°C (32°F to 120°F) Temperature 0°C – 49°C (32°F – 120°F) Relative humidity 10% – 93%, non-condensing
