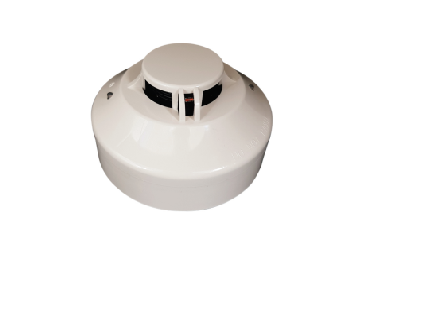

Đầu Báo Khói Nhiệt Kết Hợp

Technical Specifications TECHNICAL SPECIFIC Parameter Specification Sensitivity fixed-sensitivity levels 1, 2, and 4%/ft with classic CLIP systems Size • 2.0” (53 cm) height, base determines daimete • B501: 4.1” (10.4 cm) diameter Shipping weight 5.2 oz (147g) Operating temperature 0°C to 38°C (32°F to 100°F) UL-Listed velocity range 0 – 4000 ft./min. (1219.2 m/min.), suitable for installation in ducts Relative humidity 10% – 93% non-condensing Thermal sensing rating fixed-temperature setpoint 135°F (57°C) ELECTRICAL SPECIFICATIONS Parameter Specification Voltage range 15 – 32 volts DC peak Standby current (max. avg.) 300 A Loop resistance 50 ohms maximum; varies according to control panel used. Refer to panel installation manuals LED current (max.) 6.5 mA @ 24 VDC (“ON”)
