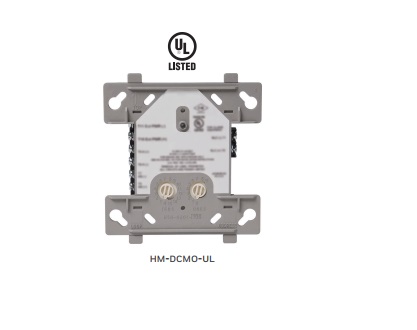

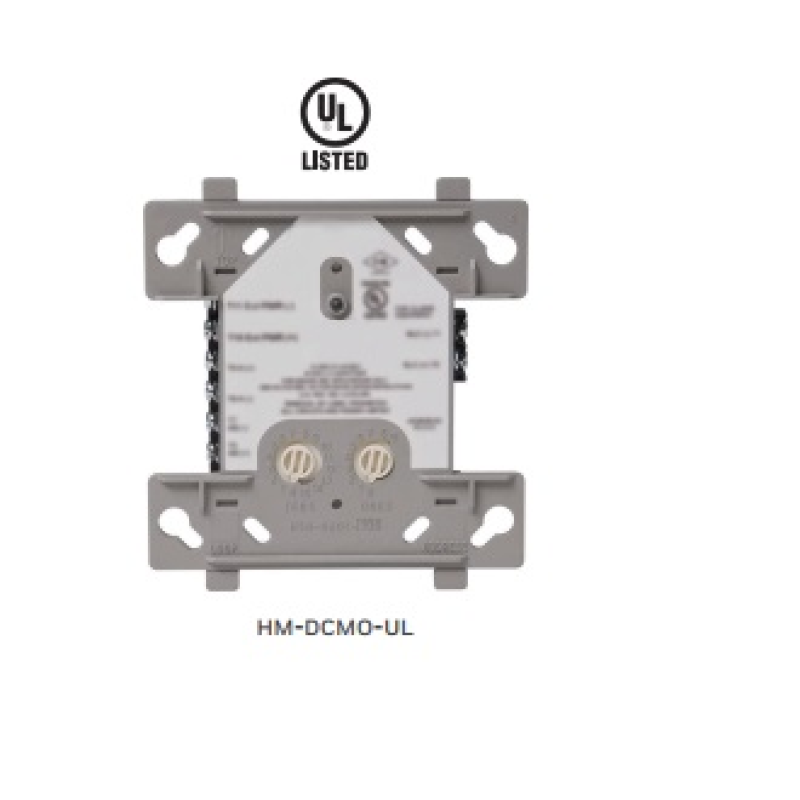

Module Điều Khiển

HM-DCMO-UL Technical Specifications PARAMETER SPECIFICATION Normal operating voltage 15 to 32 VDC Maximum SLC current draw 6.5 mA (LED on) Average operating current 350 A direct poll (CLIP mode) with LED flashing External supply voltage maximum 80 Volts (RMS or DC) Drain on external supply 2 mA maximum (using internal EOL relay) EOL resistance 47K ohms Temperature range 32°F to 120°F (0°C to 49°C) Humidity range 10% to 93% non-condensing Dimensions • 4.5" (11.43 cm) high x 4" (10.16 cm) wide x 1.25" (3.175 cm) deep • Mounts to a 4" (10.16 cm) square x 2.215" (5.398 cm) deep box
