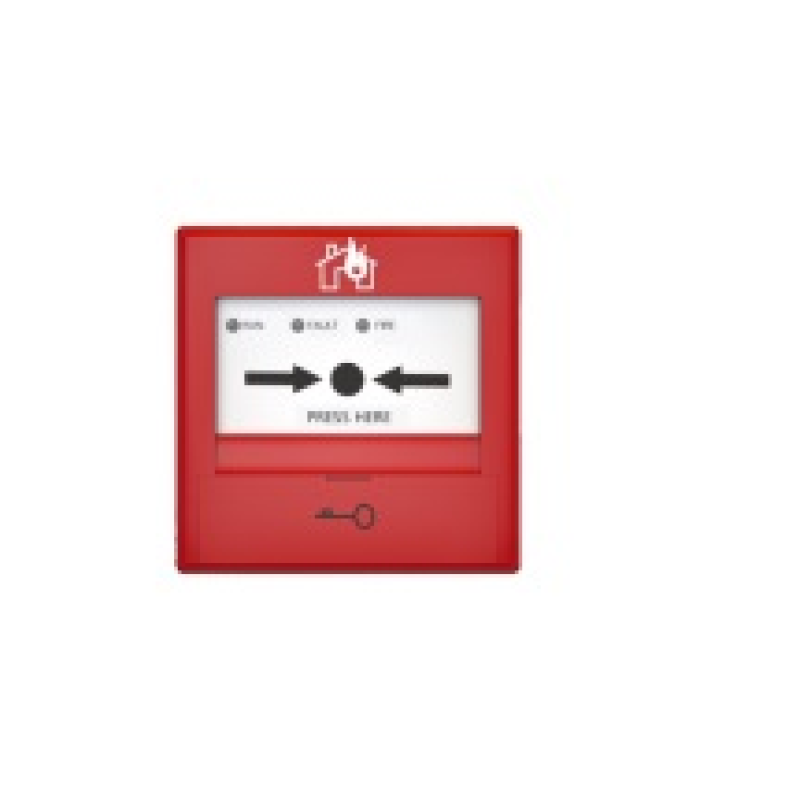

Installed in public places; when there is a fire, pressing the frangible element on this MCP can send

fire signal to fire alarm control panel

send fire signal to fire alarm control panel

Alarm by pressing, reset by a special key

Non-polarized two-wire to the controller

Electronically addressed

Reusable

Technical Specifications

Operating voltage: Loop 24V

Operating current:Standby current: ≤0.2mA;Alarm current: ≤0.8mA

Operating Environment: Indoor Temperature: -10°C～+55°C;

 Relative Humidity: ≤95%, non-condensing

Indicator: Red. Flashes about every 3s when polling;

 Illuminates after alarming

Programming method: Electronically programming

Code range: one address is within 1～255

Material and color of enclosure: ABS; Red

Weight: About 120g (with base)

Mounting hole distance: 60mm

Dimension (L×W×H): 90mm×90mm×42mm (with base)
