Chi tiết sản phẩm

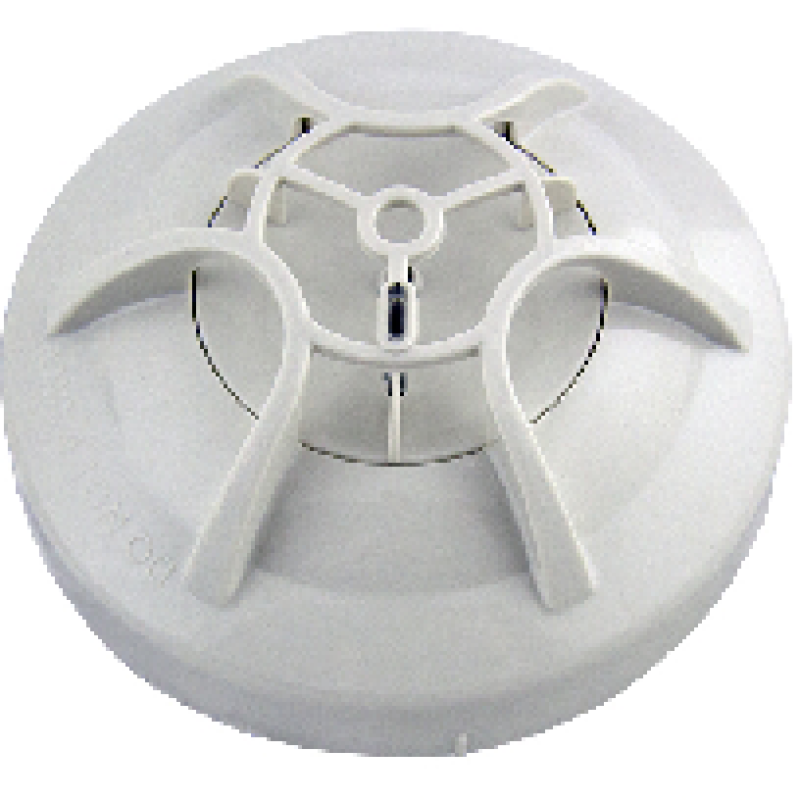

- Đầu Dò Nhiệt Địa Chỉ TC (JTW-Z0M-TC5102)
- Mã sản phẩm: JTW-Z0M-TC5101
- Giá: Liên hệ
- Lượt xem: 2632
-
Classification:Automatic Fire Alarm System
- Click:201
- Date:2017/09/19
- Download Catalog
-
▪ Advanced single-chip microcomputer technology
▪ Non-polarized two-wire
▪ Indoor garage, kitchen, boiler room, generator room, drying room and other places
▪ Approvals：LPCB(EN54-5)CE
-
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
Technical Specifications
|
Operating voltage |
Loop 24V(18.5V～26V) |
|
Operating current |
Standby current: ≤0.3mA;Alarm current: ≤0.8mA |
|
Operating Environment |
Temperature: -10°C～+50°C;Relative Humidity: ≤95%, non-condensing |
|
Indicator |
Red,Flashes when polling,Illuminates in alarm |
|
Ingress protection rating |
IP33 |
|
Material and color of enclosure |
ABS; Milky white |
|
Coding method |
Electronically coding |
|
Code range |
1～255 |
|
Weight |
About 110g |
|
Mounting hole distance |
60mm |
|
Dimension |
100mm×50mm (with base) |
