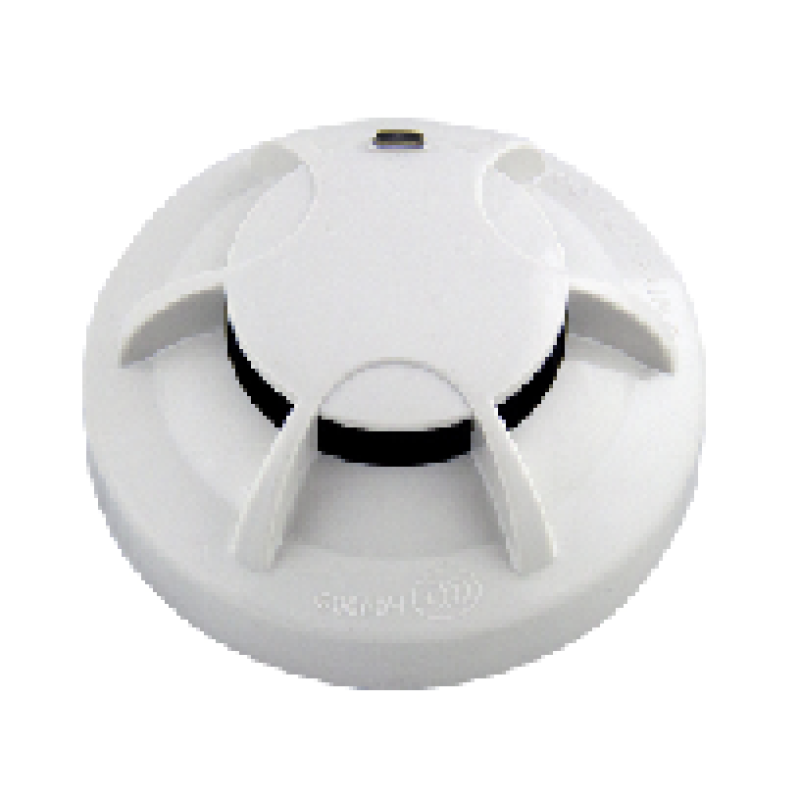

Đầu Dò Khói Quang Địa Chỉ JTY-GM-TC5101

Mã sản phẩm: JTY-GM-TC5101 Giá: Liên hệ Lượt xem: 4085 Classification:Automatic Fire Alarm System Click:199 Date:2017/03/17 Download Catalog ▪ Infrared scattering principle ▪ Non-polarized two-wire ▪ Drift compensation and fault detecting function ▪ Reporting dirt fault ▪ Hotel, restaurant, warehouse, library, office building, teaching building, power plant and other places ▪ Approvals：LPCB(EN54-7)CE

Lượt xem: 41

Giá: Liên hệ

Technical Specifications

Operating voltage	Loop 24V(18.5V～26V)
Operating current	Standby current: ≤0.3mA;Alarm current: ≤0.8mA
Operating Environment	Temperature: -10°C～+55°C,Relative Humidity: ≤95%, non-condensing
Indicator	Red,Flashes when polling,Illuminates in alarm
Ingress protection rating	IP23
Material and color of enclosure	ABS; Milky white
Coding method	Electronically coding
Code range	1～255
Weight	About 110g
Mounting hole distance	60mm
Dimension	100mm×51mm (with base)
