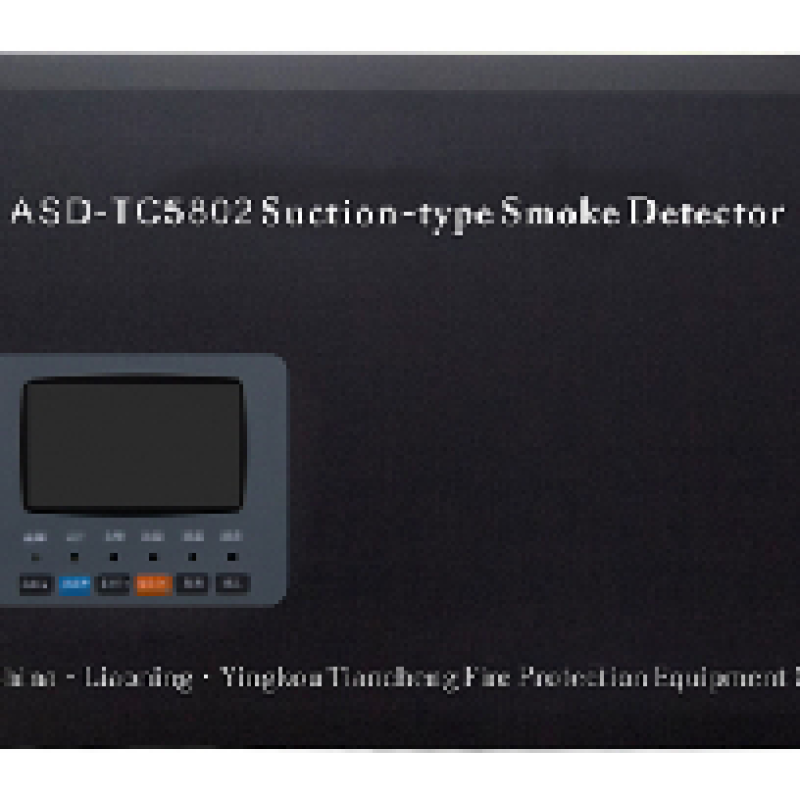

ASD-TC5802 Suction-type Smoke Detector

High precise pipeline sampling and high sensitive suction

Operating environment: clean, large places, or places with high-temperature, high-humidity or strong

electromagnetic radiation

Application places: warehouses, offices, production sites, airports, factories, historical buildings, clean

rooms, EDP rooms, communication exchange rooms, shops, cinemas, leisure centers, churches, libraries,

hotels, hospitals, electric and nuclear power plants, storerooms, subways and etc

Wall-mounted structure

Technical Specifications

Operating voltage: Bus voltage:24V, range allowed: 16V～28V

 Power: DC24V, range allowed: DC20V～DC28V

Operating current: Bus: Standby current: ≤0.6mA, Alarm current: ≤0.6mA

Relay output: 1A/24VDC, 1A/120VAC

Networking mode: Loop communication, RS-485, CAN bus loop communication

Information storage capacity:

 Fire log: 1000 items, fault log: 1000 items and disable log: 1000 items

Max sampling length of single tube: 100m

Number of sampling loop: 2

Material of enclosure: Metal

Ingress protection rating: IP30

Dimensions (L×W×H): 476mm×125mm×350mm (width not conclude the size of inlet and outlet pipe)

Operating environment:

 Temperature:-10℃～+55℃

 Relative humidity:10%～95%, non-condensing

Standard: GB 15631-2008
