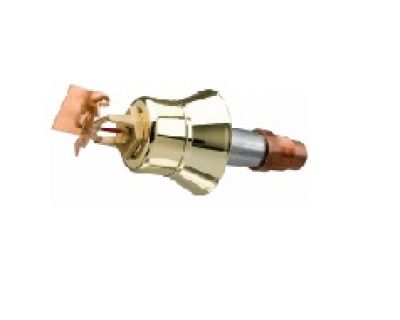

- TY5339 Đầu Phun Sprinkler Tyco Hướng Ngang Loại Khô K11.2
- Mã sản phẩm: TY5339
- Giá: Liên hệ
- Lượt xem: 240
TYCO Series DS-3 Dry-Type Sprinklers, 11.2K Horizontal Sidewall, Standard Response, Extended Coverage, Ordinary Hazard (ECOH) are decorative glass bulb automatic sprinklers. They are intended for use in applications where the sprinklers and/or a portion of the connecting piping may be exposed to freezing temperatures; for example, horizontal piping extensions through a wall to protect an unheated area of a building.
Series DS-3 Extended Coverage Ordinary Hazard Horizontal Sidewall, Dry-Type Sprinklers are designed for extended coverage use in ordinary hazard occupancies (ECOH) per NFPA 13.
Series DS-3 Dry-Type Sprinklers provide protection of coverage areas up to 16 ft x 20 ft (320 ft2) as compared to standard coverage horizontal sidewall sprinklers having a maximum coverage area of 10 ft x 10 ft (100 ft2) for ordinary hazard occupancies.
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
UL and C-UL Listed See Table A and the Design Criteria section
Maximum Working Pressure 175 psi (12,1 bar)
Inlet Thread Connections 1 In. NPT ISO 7-R 1
Discharge Coefficient See Table B
Temperature Ratings 155°F (68°C) and 200°F (93°C)
