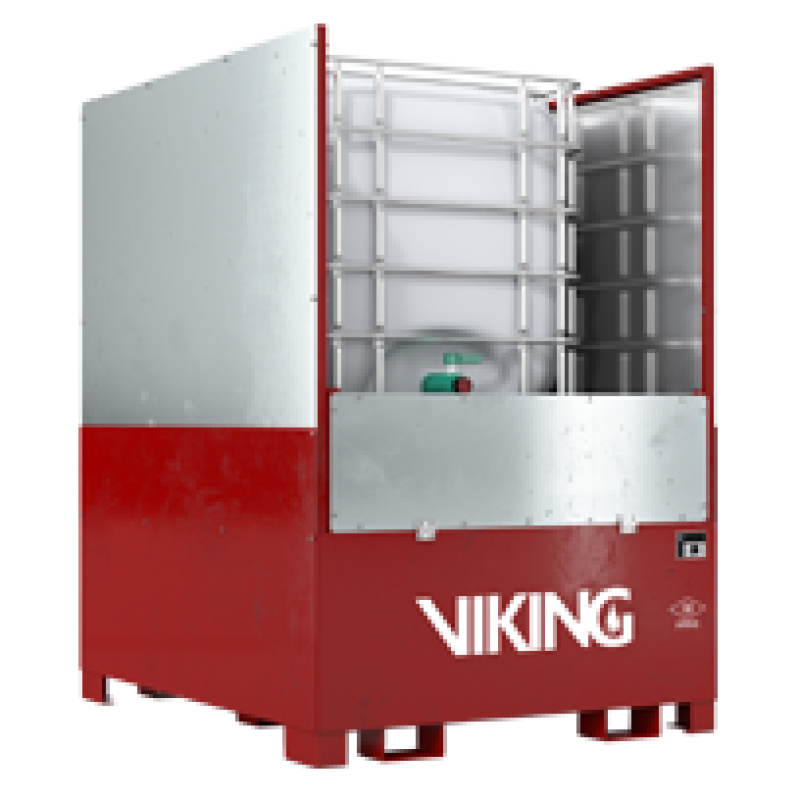

- Model BWCon 1.400 IBC Fire Protection Containment Unit
- Giá: Liên hệ
- Lượt xem: 4170
GENERAL DESCRIPTION
The composite Intermediate Bulk Container (IBC) Spill Containment Unit is used to store single ignitable liquid composite IBC’s when located within manufacturing, process areas, small storage or similar environments. The unit is particularly useful when a limited number of IBC’s are introduced to an area where a fixed fire protection system is not in place or not able to effectively cover the additional risks involved with Class B fires. Subject to AHJ acceptance, the unit also gives the option to utilize non-listed/approved IBC containers. The fire protection containment unit is intended to capture an ignitable liquid release within a footprint designed to limit the size of a potential pool fire. The Model 275 and Model 330 containment units have a capacity of up to 150% of their model volume as shown in Table 3.4.1. Containing the majority of released ignitable liquid prevents the formation of a spreading fire. Limiting the size of the pool surface within the unit reduces the heat release rate of the fire thereby mitigating damage within an occupancy. There is also the capacity to accommodate additional water or foam solution discharged by a sprinkler or deluge system in the protected area. Typical fields of application include chemical industries, pharmaceutical plants, automotive plants, paint manufacturing, wood processing and warehousing operations. This Technical Data is intended for trained experts. For further information, please contact the appropriate sales office in Section 4 - Availability, or refer to the technical documentation. The contents of this publication are subject to modifications without notice.
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
LISTINGS AND APPROVALS
FM Approved – Storage Containers for IBCs; Class 6086 NOTE: International approval certificates may be available upon request. Other Approvals are in the name of the original equipment manufacturer. Contact Viking for further information.TECHNICAL DATA
3.1 Construction Features • Containment sump • Additional capacity to contain discharge from fire suppression system • Carbon steel construction • Flame barrier to protect containment sump from fire • No overflow or spread of ignitable burning liquid • Forklift or pallet truck access • Filling and dispensing access • Open top to accept overhead sprinkler discharge • Hinged front guard for easy loading / unloading operations • Optional roller tracks for easy placement of the composite IBC
