Đầu Báo Khói Trong Ống Gió Duct FW562 Maple Amor

Đầu Báo Khói Trong Ống Gió Duct FW562 Maple Amor

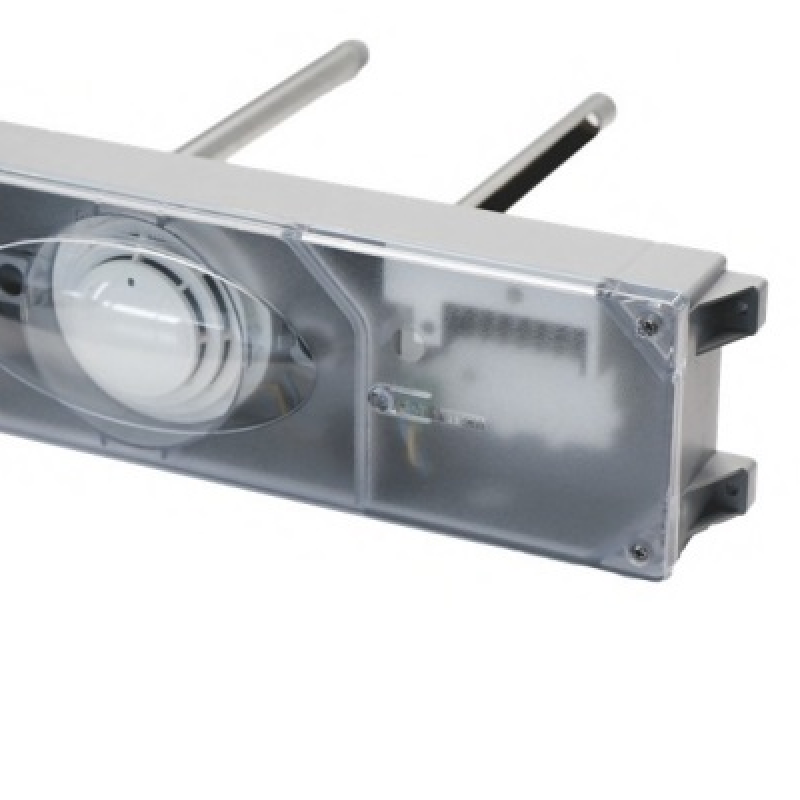

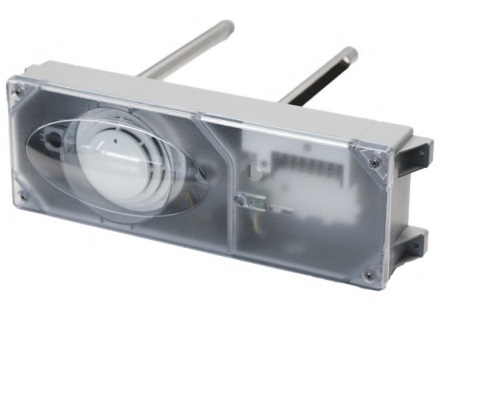

The FW562-A/B/C and FW562C-A/B/C models are smart ventilation duct detectors designed for use with model FW511A detector heads. FW562-A/B/C are UL-listed devices according to UL 268A, and FW562CA/B/C are ULC listed according to ULC- S529 for fire protection systems. Equipped with a photoelectric smoke detector, the units will signal the presence of a dangerous amount of combustion product in the ventilation system. They are compatible with Maple Armor’s FW series control panels model FW105, FW106, FW106C, FW106S, FW106SC.
Lượt xem: 1
Giá: Liên hệ

SPECIFICATIONS

Nominal Voltage 24 VDC SLC

Voltage Range 17.6 to 28V dc

Standby Current 0.35 mA

Alarm Current 2 mA

Operating Temperature 32°F to 100°F (0°C to 38°C)

Operating Humidity 0% to 93% RH

Dimension 329(W) x 114(H) x 51(D) mm (13 1/8 x 4 x 2) in.

Weight (with base) 4.6 oz (132g)

Mounting location Side and top
