Cat.6 F/UTP Cable 23AWG,PVC CM/CMR/CMP,LSZH

Product Classification

Portfolio         Albertsons^@

Product Series        ABS-Cat6

Product Type          Twisted pair cable

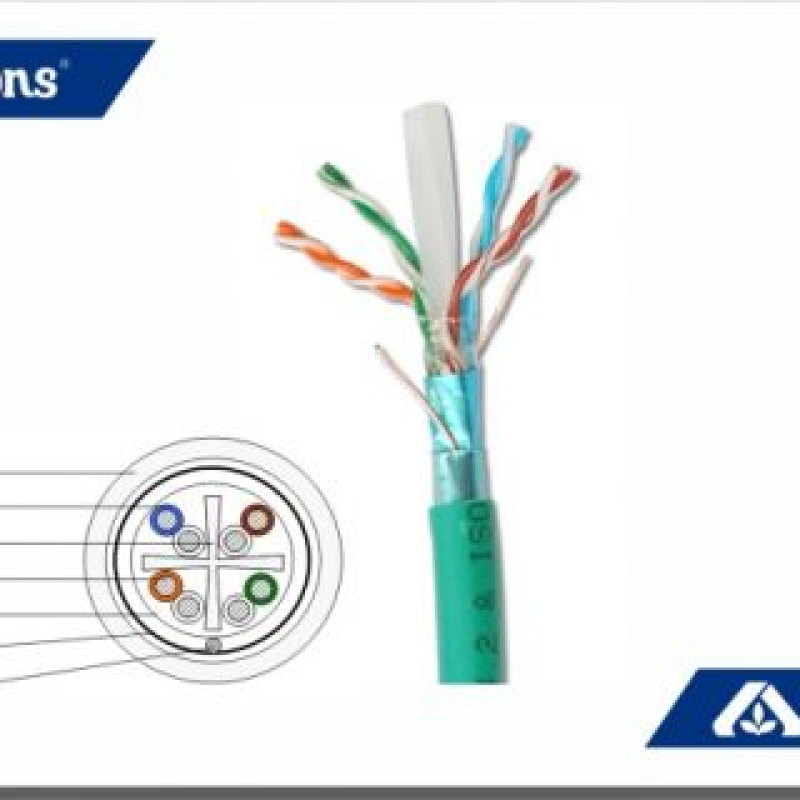

Cross Section Drawing

Construction Materials

Jacket Material       PVC / LSZH

Conductor Material       Bare copper

Drain Wire Material       Tinned copper

Insulation Material        Polyolefin

Shield (Tape) Material  Polyester/Aluminum shield

Dimensions

Cable Length          305 m   |   1000 ft

Cable Weight         34.20 lb/kft

Diameter Over Jacket, nominal      7.214 mm   |   0.284 in

Jacket Thickness     0.50 mm   |   0.020 in

Electrical Specifications

ANSI/TIA Category         6

dc Resistance Unbalance, maximum     2.5 %

dc Resistance, maximum       9.38 ohms/100 m

Mutual Capacitance at Frequency         5.6 nF/100 m @ 1 kHz

Nominal Velocity of Propagation (NVP)         68 %

Operating Frequency, maximum    100 MHz

Operating Voltage, maximum        80 V

Transmission Standards         ANSI/TIA-568-C.2   |   CENELEC EN 50288-3-1   |   ISO/IEC 11801 Class D

Dielectric Strength, minimum        1500 Vac   |   2500 Vdc

Environmental Specifications

Environmental Space     Non-plenum

Flame Test Method        CM / CMR / CMP

Environmental Space     Low Smoke Zero Halogen (LSZH)

Smoke Test Method       IEC 61034-2

Acid Gas Test Method    IEC 60754-2

Flame Test Method        IEC 60332-3

Installation Temperature       0 °C to +60 °C (+32 °F to +140 °F)

Operating Temperature         -20 °C to +60 °C (-4 °F to +140 °F)

General Specifications

Cable Type     F/UTP,FF/UTP,SF/UTP (shielded)

Packaging Type       WE TOTE® box

Pairs, quantity       4

Cable Component Type         Horizontal

Jacket Color  Light blue, Brown, Red,Lemon Green

Conductor Gauge, singles      23 AWG

Conductor Type, singles         Solid

Conductors, quantity     8

Drain Wire Gauge          24 AWG

Drain Wire Type     Solid

Mechanical Specifications

Pulling Tension, maximum     11 kg   |   25 lb

Standards

Wire colour

white - blue/bluewhite - orange/orangewhite - green/greenwhite - brown/brownin accordance with IEC 60189 and IEC 60708 (ring marked)

PoE

IEEE 802.3af

Cat./Class

Cat 6 / Class E - limit values as specified by TIA/EIA 568-C & ISO/IEC 11801:2017
