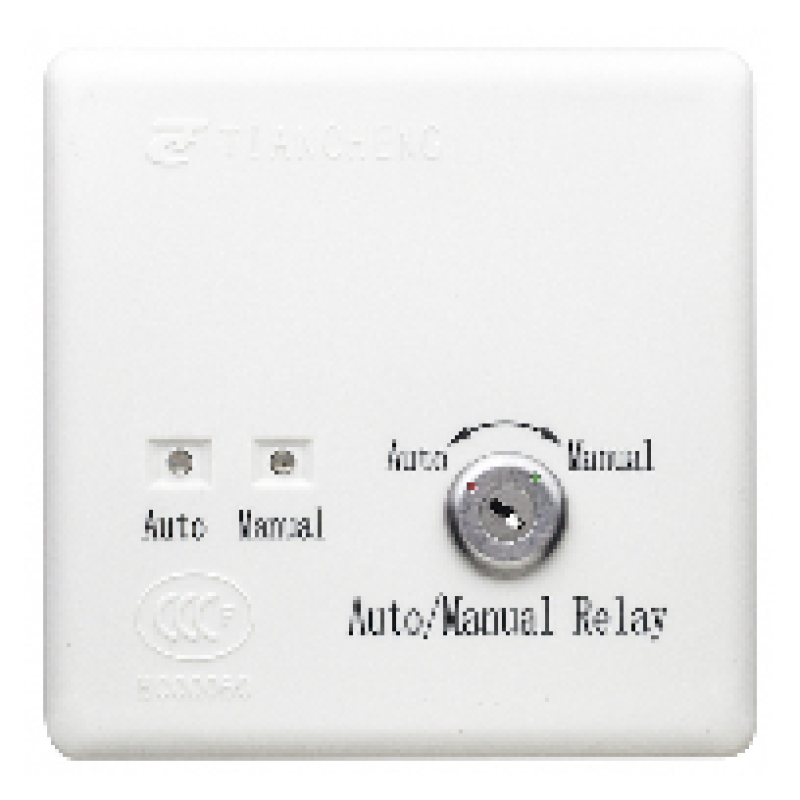

Bộ Chuyển Chế Độ Tự Động/Thủ Công TC-S5701

Conversion Between manual operation mode and automatic

operation mode

Installed at the entrance of the protected area

In manual state, systems will not linkage

In automatic state, systems will linkage

Configurable with JB-QB-QTC5015 Gas Fire-Extinguishing

Control Panel

Technical Specifications

Operating voltage:

 Loop: 24V (16V~28V)

Operating current: ≤1mA

Operating Environment:

 Temperature: -10°C～+55°C

 Relative Humidity: ≤95%, non-condensing

Indicator: Red

Material and color of enclosure: ABS; Porcelain white

Weight: About 110g (with base)

Installation hole distance: 60mm

Dimension (L×W×H): 86mm×86mm×38mm (with base)
