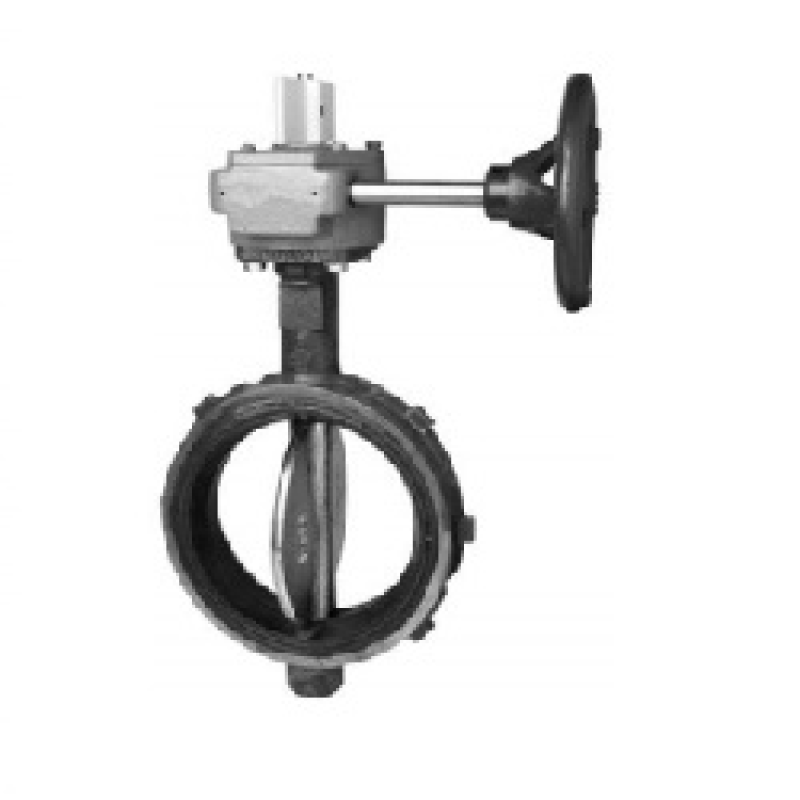

- Van Bướm Tyco BFV-N (Butterfly Valve)
- Mã sản phẩm: BFV-N
- Giá: Liên hệ
- Lượt xem: 141
The Model BFV-N Wafer Style Butterfly Valves (Ref. Figure 1) are indicating type valves designed for use in fire protection systems where a visual indication is required as to whether the valve is open or closed. They are used, for example, as system, sectional, and pump water control valves. They are suitable for installation between ANSI Class 125 or 150 flanges without the need for flange gaskets. For applications requiring supervision of the open position of the valve, the Gear Operators for the Model BFV-N Butterfly Valves are provided with two sets of factory installed internal switches each having SPDT contacts. The supervisory switches transfer their electrical contacts when there is movement from the valve’s normal open position during the first two revolutions of the handwheel.
- Chia sẻ:
- Thông tin sản phẩm
- Bình luận
Sizes: ANSI Inches / DN
2 (DN50), 2-1/2 (DN65),
3 (DN80), 4 (DN100),
The 2 through 12 inch (DN50 - DN300) Model BFV-N Wafer Style Butterfly Valves are UL and C-UL Listed and FM Approved. In addition, the Model BFV-N Wafer Style Butterfly Valves are listed by the California State Fire Marshall under Listing No. 7770-1670:101.
All laboratory listings and approvals are for indoor and outdoor use.
Maximum Working Pressure 250 psi (17,2) bar
